Guidelines¶
Update from GeoNode 2.6.3 to GeoNode 2.7+¶
Warning
Before you proceed with the following steps, it is recommended that you perform a full backup of your current environment. At the end of this section thare’s a paragraph listing the steps required to perform a full / hard backup of the whole stack.
Upgrade Development Environment¶
Prerequisites
- You did backup of the old Environment
- You cloned GeoNode from GitHub (https://github.com/GeoNode/geonode/tree/2.6.x)
Steps
- From geonode git branch do
# to refresh all git repos and commits git pull # get the 2.7.x code: if you want to keep your local copy # WARNING: you will need to fix conflicts manually git pull origin 2.7.x # if you want to switch to the new branch git checkout 2.7.x git pull
Update the Python libraries
- Exit from the current workspace
deactivate
- Create a new workspace
mkvirtualenv geonode-2.7.x
- Update the requirements
pip install pip --upgrade pip install -r requirements.txt --upgrade pip install -e . --upgrade --no-cache # WARNING: your GDAL version might be different. Use the right one accordingly to gdal-config --version pip install pygdal==2.2.1.3Note
Starting from an old environment will require you to manually remove some old deps before runnin any kind of management command.
pip uninstall geonode-user-accounts -y pip uninstall django-pagination -y pip uninstall pinax-theme-bootstrap-account -y
Update/tweak GeoNode
local_settings(for GeoServer)Left file: D:\work\code\python\geonode\geonode-2.7.x\geonode\local_settings.py.geoserver.sample Right file: D:\work\code\python\geonode\geonode-2.6.x\geonode\local_settings.py.geoserver.sample 21 import os = 21 import os ------------------------------------------------------------------------ 22 from geonode.settings import * +- ------------------------------------------------------------------------ 23 = 22 24 PROJECT_ROOT = os.path.abspath(os.path.dirname(__file__)) 23 PROJECT_ROOT = os.path.abspath(os.path.dirname(__file__)) 25 24 ------------------------------------------------------------------------ 26 MEDIA_ROOT = os.getenv('MEDIA_ROOT', os.path.join(PROJECT_ROOT, "uploaded")) +- ------------------------------------------------------------------------ 27 = ------------------------------------------------------------------------ 28 STATIC_ROOT = os.getenv('STATIC_ROOT', +- 29 os.path.join(PROJECT_ROOT, "static_root") 30 ) ------------------------------------------------------------------------ 31 = ------------------------------------------------------------------------ 32 # SECRET_KEY = '************************' +- ------------------------------------------------------------------------ 33 = ------------------------------------------------------------------------ 34 SITEURL = "http://localhost:8000/" <> 25 SITEURL = "http://localhost:8000/" ------------------------------------------------------------------------ 35 = 26 ------------------------------------------------------------------------ 36 ALLOWED_HOSTS = ['localhost', 'geonode.example.com'] +- ------------------------------------------------------------------------ 37 = ------------------------------------------------------------------------ 38 # TIME_ZONE = 'Europe/Paris' +- ------------------------------------------------------------------------ 39 = 40 DATABASES = { 27 DATABASES = { 41 'default': { 28 'default': { 42 'ENGINE': 'django.db.backends.postgresql_psycopg2', 29 'ENGINE': 'django.db.backends.postgresql_psycopg2', 43 'NAME': 'geonode', 30 'NAME': 'geonode', 44 'USER': 'geonode', 31 'USER': 'geonode', 45 'PASSWORD': 'geonode', 32 'PASSWORD': 'geonode', ------------------------------------------------------------------------ 46 'HOST' : 'localhost', +- 47 'PORT' : '5432', ------------------------------------------------------------------------ 48 }, = 33 }, 49 # vector datastore for uploads 34 # vector datastore for uploads 50 'datastore': { 35 'datastore' : { 51 #'ENGINE': 'django.contrib.gis.db.backends.postgis', 36 #'ENGINE': 'django.contrib.gis.db.backends.postgis', 52 'ENGINE': '', # Empty ENGINE name disables 37 'ENGINE': '', # Empty ENGINE name disables ------------------------------------------------------------------------ 53 'NAME': 'geonode_data', <> 38 'NAME': 'geonode', ------------------------------------------------------------------------ 54 'USER' : 'geonode', = 39 'USER' : 'geonode', 55 'PASSWORD': 'geonode', 40 'PASSWORD' : 'geonode', 56 'HOST': 'localhost', 41 'HOST' : 'localhost', 57 'PORT': '5432', 42 'PORT' : '5432', 58 } 43 } 59 } 44 } 60 45 61 GEOSERVER_LOCATION = os.getenv( 46 GEOSERVER_LOCATION = os.getenv( 62 'GEOSERVER_LOCATION', 'http://localhost:8080/geoserver/' 47 'GEOSERVER_LOCATION', 'http://localhost:8080/geoserver/' 63 ) 48 ) 64 65 GEOSERVER_PUBLIC_LOCATION = os.getenv( 49 GEOSERVER_PUBLIC_LOCATION = os.getenv( ------------------------------------------------------------------------ 66 # 'GEOSERVER_PUBLIC_LOCATION', '{}geoserver/'.format(SITEURL) <> 67 'GEOSERVER_LOCATION', 'http://localhost:8080/geoserver/' 50 'GEOSERVER_PUBLIC_LOCATION', 'http://localhost:8080/geoserver/' 68 ) ------------------------------------------------------------------------ 69 = ------------------------------------------------------------------------ 70 OGC_SERVER_DEFAULT_USER = os.getenv( +- 71 'GEOSERVER_ADMIN_USER', 'admin' 72 ) ------------------------------------------------------------------------ 73 = ------------------------------------------------------------------------ 74 OGC_SERVER_DEFAULT_PASSWORD = os.getenv( +- 75 'GEOSERVER_ADMIN_PASSWORD', 'geoserver' ------------------------------------------------------------------------ 76 ) = 51 ) 77 52 78 # OGC (WMS/WFS/WCS) Server Settings 53 # OGC (WMS/WFS/WCS) Server Settings 79 OGC_SERVER = { 54 OGC_SERVER = { 80 'default': { 55 'default': { 81 'BACKEND': 'geonode.geoserver', 56 'BACKEND': 'geonode.geoserver', ------------------------------------------------------------------------ ------------------------------------------------------------------------ 83 'LOGIN_ENDPOINT': 'j_spring_oauth2_geonode_login', = 58 'LOGIN_ENDPOINT': 'j_spring_oauth2_geonode_login', 84 'LOGOUT_ENDPOINT': 'j_spring_oauth2_geonode_logout', 59 'LOGOUT_ENDPOINT': 'j_spring_oauth2_geonode_logout', 85 # PUBLIC_LOCATION needs to be kept like this because in dev mode 60 # PUBLIC_LOCATION needs to be kept like this because in dev mode 86 # the proxy won't work and the integration tests will fail 61 # the proxy won't work and the integration tests will fail 87 # the entire block has to be overridden in the local_settings 62 # the entire block has to be overridden in the local_settings 88 'PUBLIC_LOCATION': GEOSERVER_PUBLIC_LOCATION, 63 'PUBLIC_LOCATION': GEOSERVER_PUBLIC_LOCATION, ------------------------------------------------------------------------ 89 'USER' : OGC_SERVER_DEFAULT_USER, <> 64 'USER' : 'admin', 90 'PASSWORD' : OGC_SERVER_DEFAULT_PASSWORD, 65 'PASSWORD' : 'geoserver', ------------------------------------------------------------------------ 91 'MAPFISH_PRINT_ENABLED' : True, = 66 'MAPFISH_PRINT_ENABLED' : True, 92 'PRINT_NG_ENABLED' : True, 67 'PRINT_NG_ENABLED' : True, 93 'GEONODE_SECURITY_ENABLED' : True, 68 'GEONODE_SECURITY_ENABLED' : True, ------------------------------------------------------------------------ 94 'GEOFENCE_SECURITY_ENABLED' : True, +- ------------------------------------------------------------------------ 95 'GEOGIG_ENABLED' : False, = 69 'GEOGIG_ENABLED' : False, 96 'WMST_ENABLED' : False, 70 'WMST_ENABLED' : False, 97 'BACKEND_WRITE_ENABLED': True, 71 'BACKEND_WRITE_ENABLED': True, 98 'WPS_ENABLED': False, 72 'WPS_ENABLED' : False, 99 'LOG_FILE': '%s/geoserver/data/logs/geoserver.log' % os.path.abspath(os.path.join(PROJECT_ROOT, os.pardir)), 73 'LOG_FILE': '%s/geoserver/data/logs/geoserver.log' % os.path.abspath(os.path.join(PROJECT_ROOT, os.pardir)), 100 # Set to dictionary identifier of database containing spatial data in DATABASES dictionary to enable 74 # Set to dictionary identifier of database containing spatial data in DATABASES dictionary to enable 101 'DATASTORE': '', # 'datastore', 75 'DATASTORE': '', #'datastore', ------------------------------------------------------------------------ 102 'PG_GEOGIG': False, +- 103 'TIMEOUT': 10 # number of seconds to allow for HTTP requests ------------------------------------------------------------------------ 104 } = 76 } 105 } 77 } 106 78 107 # If you want to enable Mosaics use the following configuration 79 # If you want to enable Mosaics use the following configuration ------------------------------------------------------------------------ 108 UPLOADER = { <> 80 #UPLOADER = { 109 # 'BACKEND': 'geonode.rest', 81 ## 'BACKEND': 'geonode.rest', 110 'BACKEND': 'geonode.importer', 82 # 'BACKEND': 'geonode.importer', 111 'OPTIONS': { 83 # 'OPTIONS': { 112 'TIME_ENABLED': True, 84 # 'TIME_ENABLED': True, 113 'MOSAIC_ENABLED': False, 85 # 'MOSAIC_ENABLED': True, 114 'GEOGIG_ENABLED': False, 86 # 'GEOGIG_ENABLED': False, 115 }, 87 # } 116 'SUPPORTED_CRS': [ 117 'EPSG:4326', 118 'EPSG:3785', 119 'EPSG:3857', 120 'EPSG:900913', 121 'EPSG:32647', 122 'EPSG:32736' 123 ], 124 'SUPPORTED_EXT': [ 125 '.shp', 126 '.csv', 127 '.kml', 128 '.kmz', 129 '.json', 130 '.geojson', 131 '.tif', 132 '.tiff', 133 '.geotiff', 134 '.gml', 135 '.xml' 136 ] 88 #} 137 } 89 ------------------------------------------------------------------------ 138 = 90 139 CATALOGUE = { 91 CATALOGUE = { 140 'default': { 92 'default': { 141 # The underlying CSW implementation 93 # The underlying CSW implementation 142 # default is pycsw in local mode (tied directly to GeoNode Django DB) 94 # default is pycsw in local mode (tied directly to GeoNode Django DB) 143 'ENGINE': 'geonode.catalogue.backends.pycsw_local', 95 'ENGINE': 'geonode.catalogue.backends.pycsw_local', ------------------------------------------------------------------------ ------------------------------------------------------------------------ 146 # GeoNetwork opensource = 98 # GeoNetwork opensource 147 # 'ENGINE': 'geonode.catalogue.backends.geonetwork', 99 # 'ENGINE': 'geonode.catalogue.backends.geonetwork', 148 # deegree and others 100 # deegree and others 149 # 'ENGINE': 'geonode.catalogue.backends.generic', 101 # 'ENGINE': 'geonode.catalogue.backends.generic', 150 102 151 # The FULLY QUALIFIED base url to the CSW instance for this GeoNode 103 # The FULLY QUALIFIED base url to the CSW instance for this GeoNode ------------------------------------------------------------------------ 152 'URL': '%scatalogue/csw' % SITEURL, <> 104 'URL': '%scatalogue/csw' % SITEURL, ------------------------------------------------------------------------ 153 # 'URL': 'http://localhost:8080/geonetwork/srv/en/csw', = 105 # 'URL': 'http://localhost:8080/geonetwork/srv/en/csw', 154 # 'URL': 'http://localhost:8080/deegree-csw-demo-3.0.4/services', 106 # 'URL': 'http://localhost:8080/deegree-csw-demo-3.0.4/services', 155 107 156 # login credentials (for GeoNetwork) 108 # login credentials (for GeoNetwork) 157 'USER': 'admin', 109 'USER': 'admin', 158 'PASSWORD': 'admin', 110 'PASSWORD': 'admin', 159 } 111 } 160 } 112 } 161 113 ------------------------------------------------------------------------ 162 # pycsw settings +- 163 PYCSW = { 164 # pycsw configuration 165 'CONFIGURATION': { 166 # uncomment / adjust to override server config system defaults 167 # 'server': { 168 # 'maxrecords': '10', 169 # 'pretty_print': 'true', 170 # 'federatedcatalogues': 'http://catalog.data.gov/csw' 171 # }, 172 'metadata:main': { 173 'identification_title': 'GeoNode Catalogue', 174 'identification_abstract': 'GeoNode is an open source platform' \ 175 ' that facilitates the creation, sharing, and collaborative use' \ 176 ' of geospatial data', 177 'identification_keywords': 'sdi, catalogue, discovery, metadata,' \ 178 ' GeoNode', 179 'identification_keywords_type': 'theme', 180 'identification_fees': 'None', 181 'identification_accessconstraints': 'None', 182 'provider_name': 'Organization Name', 183 'provider_url': SITEURL, 184 'contact_name': 'Lastname, Firstname', 185 'contact_position': 'Position Title', 186 'contact_address': 'Mailing Address', 187 'contact_city': 'City', 188 'contact_stateorprovince': 'Administrative Area', 189 'contact_postalcode': 'Zip or Postal Code', 190 'contact_country': 'Country', 191 'contact_phone': '+xx-xxx-xxx-xxxx', 192 'contact_fax': '+xx-xxx-xxx-xxxx', 193 'contact_email': 'Email Address', 194 'contact_url': 'Contact URL', 195 'contact_hours': 'Hours of Service', 196 'contact_instructions': 'During hours of service. Off on ' \ 197 'weekends.', 198 'contact_role': 'pointOfContact', 199 }, 200 'metadata:inspire': { 201 'enabled': 'true', 202 'languages_supported': 'eng,gre', 203 'default_language': 'eng', 204 'date': 'YYYY-MM-DD', 205 'gemet_keywords': 'Utility and governmental services', 206 'conformity_service': 'notEvaluated', 207 'contact_name': 'Organization Name', 208 'contact_email': 'Email Address', 209 'temp_extent': 'YYYY-MM-DD/YYYY-MM-DD', 210 } 211 } 212 } ------------------------------------------------------------------------ 213 = ------------------------------------------------------------------------ 214 # GeoNode javascript client configuration +- ------------------------------------------------------------------------ 215 = ------------------------------------------------------------------------ 216 # default map projection +- 217 # Note: If set to EPSG:4326, then only EPSG:4326 basemaps will work. 218 DEFAULT_MAP_CRS = "EPSG:3857" ------------------------------------------------------------------------ 219 = ------------------------------------------------------------------------ 220 # Where should newly created maps be focused? +- 221 DEFAULT_MAP_CENTER = (0, 0) ------------------------------------------------------------------------ 222 = ------------------------------------------------------------------------ 223 # How tightly zoomed should newly created maps be? +- 224 # 0 = entire world; 225 # maximum zoom is between 12 and 15 (for Google Maps, coverage varies by area) 226 DEFAULT_MAP_ZOOM = 0 ------------------------------------------------------------------------ 227 = 228 # Default preview library 114 # Default preview library ------------------------------------------------------------------------ 229 LAYER_PREVIEW_LIBRARY = 'geoext' <> 115 #LAYER_PREVIEW_LIBRARY = 'geoext' 230 #LAYER_PREVIEW_LIBRARY = 'leaflet' 231 #LEAFLET_CONFIG = { 232 # 'TILES': [ 233 # # Find tiles at: 234 # # http://leaflet-extras.github.io/leaflet-providers/preview/ 235 # 236 # # Map Quest 237 # ('Map Quest', 238 # 'http://otile4.mqcdn.com/tiles/1.0.0/osm/{z}/{x}/{y}.png', 239 # 'Tiles Courtesy of <a href="http://www.mapquest.com/">MapQuest</a> ' 240 # '— Map data © ' 241 # '<a href="http://www.openstreetmap.org/copyright">OpenStreetMap</a>'), 242 # # Stamen toner lite. 243 # # ('Watercolor', 244 # # 'http://{s}.tile.stamen.com/watercolor/{z}/{x}/{y}.png', 245 # # 'Map tiles by <a href="http://stamen.com">Stamen Design</a>, \ 246 # # <a href="http://creativecommons.org/licenses/by/3.0">CC BY 3.0</a> — Map data © \ 247 # # <a href="http://openstreetmap.org">OpenStreetMap</a> contributors, \ 248 # # <a href="http://creativecommons.org/licenses/by-sa/2.0/">CC-BY-SA</a>'), 249 # # ('Toner Lite', 250 # # 'http://{s}.tile.stamen.com/toner-lite/{z}/{x}/{y}.png', 251 # # 'Map tiles by <a href="http://stamen.com">Stamen Design</a>, \ 252 # # <a href="http://creativecommons.org/licenses/by/3.0">CC BY 3.0</a> — Map data © \ 253 # # <a href="http://openstreetmap.org">OpenStreetMap</a> contributors, \ 254 # # <a href="http://creativecommons.org/licenses/by-sa/2.0/">CC-BY-SA</a>'), 255 # ], 256 # 'PLUGINS': { 257 # 'esri-leaflet': { 258 # 'js': 'lib/js/esri-leaflet.js', 259 # 'auto-include': True, 260 # }, 261 # 'leaflet-fullscreen': { 262 # 'css': 'lib/css/leaflet.fullscreen.css', 263 # 'js': 'lib/js/Leaflet.fullscreen.min.js', 264 # 'auto-include': True, 265 # }, 266 # }, 267 # 'SRID': 3857, 268 # 'RESET_VIEW': False 269 #} ------------------------------------------------------------------------ 270 = ------------------------------------------------------------------------ 271 ALT_OSM_BASEMAPS = os.environ.get('ALT_OSM_BASEMAPS', False) +- 272 CARTODB_BASEMAPS = os.environ.get('CARTODB_BASEMAPS', False) 273 STAMEN_BASEMAPS = os.environ.get('STAMEN_BASEMAPS', False) 274 THUNDERFOREST_BASEMAPS = os.environ.get('THUNDERFOREST_BASEMAPS', False) 275 MAPBOX_ACCESS_TOKEN = os.environ.get('MAPBOX_ACCESS_TOKEN', None) 276 BING_API_KEY = os.environ.get('BING_API_KEY', None) ------------------------------------------------------------------------ 277 = ------------------------------------------------------------------------ 278 MAP_BASELAYERS = [{ +- 279 "source": {"ptype": "gxp_olsource"}, 280 "type": "OpenLayers.Layer", 281 "args": ["No background"], 282 "name": "background", 283 "visibility": False, 284 "fixed": True, 285 "group":"background" 286 }, 287 # { 288 # "source": {"ptype": "gxp_olsource"}, 289 # "type": "OpenLayers.Layer.XYZ", 290 # "title": "TEST TILE", 291 # "args": ["TEST_TILE", "http://test_tiles/tiles/${z}/${x}/${y}.png"], 292 # "name": "background", 293 # "attribution": "© TEST TILE", 294 # "visibility": False, 295 # "fixed": True, 296 # "group":"background" 297 # }, 298 { 299 "source": {"ptype": "gxp_osmsource"}, 300 "type": "OpenLayers.Layer.OSM", 301 "name": "mapnik", 302 "visibility": True, 303 "fixed": True, 304 "group": "background" 305 }] ------------------------------------------------------------------------ 306 = ------------------------------------------------------------------------ 307 if 'geonode.geoserver' in INSTALLED_APPS: +- 308 LOCAL_GEOSERVER = { 309 "source": { 310 "ptype": "gxp_wmscsource", 311 "url": OGC_SERVER['default']['PUBLIC_LOCATION'] + "wms", 312 "restUrl": "/gs/rest" 313 } 314 } 315 baselayers = MAP_BASELAYERS 316 MAP_BASELAYERS = [LOCAL_GEOSERVER] 317 MAP_BASELAYERS.extend(baselayers) ------------------------------------------------------------------------ 318 = ------------------------------------------------------------------------ 319 # Use kombu broker by default +- 320 # REDIS_URL = 'redis://localhost:6379/1' 321 # BROKER_URL = REDIS_URL 322 # CELERY_RESULT_BACKEND = REDIS_URL 323 CELERYD_HIJACK_ROOT_LOGGER = True 324 CELERYD_CONCURENCY = 1 325 # Set this to False to run real async tasks 326 CELERY_ALWAYS_EAGER = True 327 CELERYD_LOG_FILE = None 328 CELERY_REDIRECT_STDOUTS = True 329 CELERYD_LOG_LEVEL = 1 ------------------------------------------------------------------------ 330 = ------------------------------------------------------------------------ 331 # Haystack Search Backend Configuration. To enable, +- 332 # first install the following: 333 # - pip install django-haystack 334 # - pip install elasticsearch==2.4.0 335 # - pip install woosh 336 # - pip install pyelasticsearch 337 # Set HAYSTACK_SEARCH to True 338 # Run "python manage.py rebuild_index" 339 # HAYSTACK_SEARCH = False 340 # Avoid permissions prefiltering 341 SKIP_PERMS_FILTER = False 342 # Update facet counts from Haystack 343 HAYSTACK_FACET_COUNTS = True 344 HAYSTACK_CONNECTIONS = { 345 'default': { 346 'ENGINE': 'haystack.backends.elasticsearch2_backend.Elasticsearch2SearchEngine', 347 'URL': 'http://127.0.0.1:9200/', 348 'INDEX_NAME': 'haystack', 349 }, 350 # 'db': { 351 # 'ENGINE': 'haystack.backends.simple_backend.SimpleEngine', 352 # 'EXCLUDED_INDEXES': ['thirdpartyapp.search_indexes.BarIndex'], 353 # } 354 } 355 HAYSTACK_SIGNAL_PROCESSOR = 'haystack.signals.RealtimeSignalProcessor' 356 # HAYSTACK_SEARCH_RESULTS_PER_PAGE = 20 ------------------------------------------------------------------------ 357 = ------------------------------------------------------------------------ 358 LOGGING = { +- 359 'version': 1, 360 'disable_existing_loggers': True, 361 'formatters': { 362 'verbose': { 363 'format': '%(levelname)s %(asctime)s %(module)s %(process)d ' 364 '%(thread)d %(message)s' 365 }, 366 'simple': { 367 'format': '%(message)s', 368 }, 369 }, 370 'filters': { 371 'require_debug_false': { 372 '()': 'django.utils.log.RequireDebugFalse' 373 } 374 }, 375 'handlers': { 376 'null': { 377 'level': 'ERROR', 378 'class': 'django.utils.log.NullHandler', 379 }, 380 'console': { 381 'level': 'DEBUG', 382 'class': 'logging.StreamHandler', 383 'formatter': 'simple' 384 }, 385 'mail_admins': { 386 'level': 'ERROR', 'filters': ['require_debug_false'], 387 'class': 'django.utils.log.AdminEmailHandler', 388 } 389 }, 390 "loggers": { 391 "django": { 392 "handlers": ["console"], "level": "ERROR", }, 393 "geonode": { 394 "handlers": ["console"], "level": "DEBUG", }, 395 "gsconfig.catalog": { 396 "handlers": ["console"], "level": "DEBUG", }, 397 "owslib": { 398 "handlers": ["console"], "level": "DEBUG", }, 399 "pycsw": { 400 "handlers": ["console"], "level": "ERROR", }, 401 }, 402 } ------------------------------------------------------------------------ 403 = ------------------------------------------------------------------------ 404 CORS_ORIGIN_ALLOW_ALL = True +- ------------------------------------------------------------------------ 405 = ------------------------------------------------------------------------ 406 GEOIP_PATH = "/usr/local/share/GeoIP" +- ------------------------------------------------------------------------ 407 = ------------------------------------------------------------------------ 408 MONITORING_ENABLED = True +- 409 # add following lines to your local settings to enable monitoring 410 if MONITORING_ENABLED: 411 INSTALLED_APPS += ('geonode.contrib.monitoring',) 412 MIDDLEWARE_CLASSES += ('geonode.contrib.monitoring.middleware.MonitoringMiddleware',) 413 MONITORING_CONFIG = None 414 MONITORING_SERVICE_NAME = 'local-geonode' ------------------------------------------------------------------------Update the DB

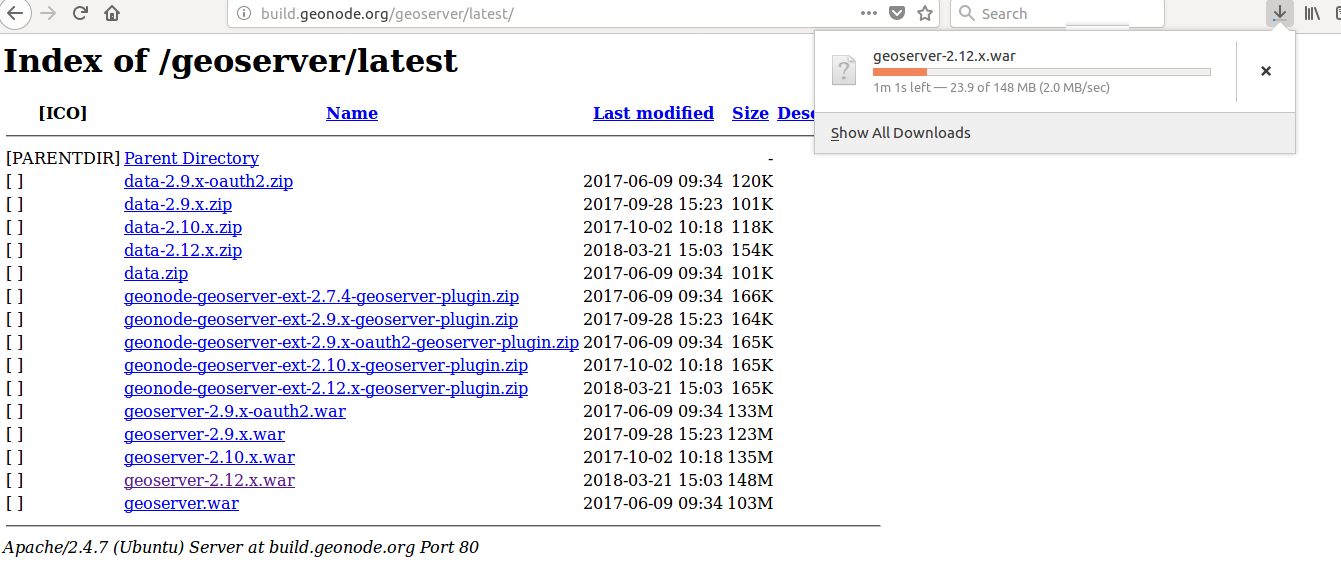

DJANGO_SETTINGS_MODULE=geonode.local_settings paver syncDownload the latest GeoServer WAR (https://build.geo-solutions.it/geonode/geoserver/latest//geoserver-2.12.2.war)
Stop GeoServer
Extract the WAR content and/or substitute the old one
# move the old one mv geoserver/ geoserver_old/ # create an ampty folder for the new one mkdir geoserver cd geoserver # unzip the new GeoServer to the new folder unzip /home/geosolutions/Downloads/geoserver-2.12.2.warDelete the notifier configuration by deleting the content of the
GEOSERVER_DATA_DIR/notifierfolderDelete the printing configuration by deleting the content of the
GEOSERVER_DATA_DIR/printingfolderInsert the content of the 2.12.2 data dir (https://build.geo-solutions.it/geonode/geoserver/latest//data-2.12.2.zip), specifically:
- The content of
data/notifier, into theGEOSERVER_DATA_DIR/notifier folder.- The content of
data/monitoring, into theGEOSERVER_DATA_DIR/monitoring folder.- The content of
data/styles, into theGEOSERVER_DATA_DIR/styles folder.- The content of
data/user_projections, into theGEOSERVER_DATA_DIR/user_projectionsfolder.Update the
GEOSERVER_DATA_DIR/geofence/geofence-server.properties as followsLeft file: D:\tmp\data-2.12.2\data\geofence\geofence-server.properties Right file: D:\tmp\data-2.9.x-oauth2\data\geofence\geofence-server.properties 13 useRolesToFilter=false = 13 useRolesToFilter=false 14 acceptedRoles= 14 acceptedRoles= 15 15 16 16 17 ### Cache configuration 17 ### Cache configuration 18 18 ------------------------------------------------------------------------ 19 cacheSize=500000 <> 19 cacheSize=50000 20 cacheRefresh=6000000 20 cacheRefresh=600000 21 cacheExpire=6000000 21 cacheExpire=600000 ------------------------------------------------------------------------ 22 = ------------------------------------------------------------------------ 23 gwc.context.suffix=gwc +- 24 org.geoserver.rest.DefaultUserGroupServiceName=geonode REST role service ------------------------------------------------------------------------Create/modify
GEOSERVER_DATA_DIR/gwc/geowebcache-diskquota.xmlas followsFile: D:\tmp\data-2.12.2\data\gwc\geowebcache-diskquota.xml 1 <gwcQuotaConfiguration> +- 2 <enabled>false</enabled> 3 <cacheCleanUpFrequency>10</cacheCleanUpFrequency> 4 <cacheCleanUpUnits>SECONDS</cacheCleanUpUnits> 5 <maxConcurrentCleanUps>2</maxConcurrentCleanUps> 6 <globalExpirationPolicyName>LRU</globalExpirationPolicyName> 7 <globalQuota> 8 <value>500</value> 9 <units>MiB</units> 10 </globalQuota> 11 <quotaStore>H2</quotaStore> 12 </gwcQuotaConfiguration> ----------------------------------------------------------------------Create/modify
GEOSERVER_DATA_DIR/logs/gwc-gs.xmlas followsLeft file: D:\tmp\data-2.12.2\data\gwc-gs.xml Right file: D:\tmp\data-2.9.x-oauth2\data\gwc-gs.xml 2 <version>1.1.0</version> = 2 <version>1.1.0</version> 3 <directWMSIntegrationEnabled>true</directWMSIntegrationEnabled> 3 <directWMSIntegrationEnabled>true</directWMSIntegrationEnabled> 4 <WMSCEnabled>true</WMSCEnabled> 4 <WMSCEnabled>true</WMSCEnabled> 5 <TMSEnabled>true</TMSEnabled> 5 <TMSEnabled>true</TMSEnabled> 6 <securityEnabled>false</securityEnabled> 6 <securityEnabled>false</securityEnabled> 7 <innerCachingEnabled>false</innerCachingEnabled> 7 <innerCachingEnabled>false</innerCachingEnabled> ------------------------------------------------------------------------ 8 <persistenceEnabled>true</persistenceEnabled> <> 8 <persistenceEnabled>false</persistenceEnabled> ------------------------------------------------------------------------ 9 <cacheProviderClass>class org.geowebcache.storage.blobstore.memory.guava.GuavaCacheProvider</cacheProviderClass> = 9 <cacheProviderClass>class org.geowebcache.storage.blobstore.memory.guava.GuavaCacheProvider</cacheProviderClass> 10 <cacheConfigurations> 10 <cacheConfigurations> 11 <entry> 11 <entry> 12 <string>class org.geowebcache.storage.blobstore.memory.guava.GuavaCacheProvider</string> 12 <string>class org.geowebcache.storage.blobstore.memory.guava.GuavaCacheProvider</string> 13 <InnerCacheConfiguration> 13 <InnerCacheConfiguration> 14 <hardMemoryLimit>16</hardMemoryLimit> 14 <hardMemoryLimit>16</hardMemoryLimit> ------------------------------------------------------------------------ ------------------------------------------------------------------------ 26 <defaultCachingGridSetIds> = 26 <defaultCachingGridSetIds> 27 <string>EPSG:4326</string> 27 <string>EPSG:4326</string> 28 <string>EPSG:900913</string> 28 <string>EPSG:900913</string> 29 </defaultCachingGridSetIds> 29 </defaultCachingGridSetIds> 30 <defaultCoverageCacheFormats> 30 <defaultCoverageCacheFormats> 31 <string>image/png</string> 31 <string>image/png</string> ------------------------------------------------------------------------ 32 <string>image/vnd.jpeg-png</string> +- ------------------------------------------------------------------------ 33 <string>image/jpeg</string> = 32 <string>image/jpeg</string> 34 <string>image/gif</string> 33 <string>image/gif</string> 35 <string>image/png8</string> 34 <string>image/png8</string> 36 </defaultCoverageCacheFormats> 35 </defaultCoverageCacheFormats> 37 <defaultVectorCacheFormats> 36 <defaultVectorCacheFormats> ------------------------------------------------------------------------ 38 <string>application/json;type=utfgrid</string> +- ------------------------------------------------------------------------ 39 <string>image/png</string> = 37 <string>image/png</string> ------------------------------------------------------------------------ 40 <string>image/vnd.jpeg-png</string> +- ------------------------------------------------------------------------ 41 <string>image/jpeg</string> = 38 <string>image/jpeg</string> 42 <string>image/gif</string> 39 <string>image/gif</string> 43 <string>image/png8</string> 40 <string>image/png8</string> 44 </defaultVectorCacheFormats> 41 </defaultVectorCacheFormats> 45 <defaultOtherCacheFormats> 42 <defaultOtherCacheFormats> 46 <string>image/png</string> 43 <string>image/png</string> ------------------------------------------------------------------------ -+ 44 <string>image/jpeg</string> 45 <string>image/gif</string> 46 <string>image/png8</string> ------------------------------------------------------------------------ 47 </defaultOtherCacheFormats> = 47 </defaultOtherCacheFormats> 48 </GeoServerGWCConfig> 48 </GeoServerGWCConfig> ------------------------------------------------------------------------Create/modify
GEOSERVER_DATA_DIR/logs/QUIET_LOGGING.propertiesas follows## This log4j configuration file needs to stay here, and is used as the default logging setup ## during data_dir upgrades and in case the chosen logging config isn't available. ## ## As GeoTools uses java.util.logging logging instead of log4j, GeoServer makes ## the following mappings to adjust the log4j levels specified in this file to ## the GeoTools logging system: ## ## Log4J Level java.util.logging Level ## -------------------------------------------- ## ALL FINEST ## TRACE FINER ## DEBUG FINE (includes CONFIG) ## INFO INFO ## ERROR/ERROR ERRORING ## ERROR SEVERE ## OFF OFF log4j.rootLogger=OFF, stdout log4j.appender.stdout=org.apache.log4j.ConsoleAppender log4j.appender.stdout.layout=org.apache.log4j.PatternLayout log4j.appender.stdout.layout.ConversionPattern=%d{dd MMM HH:mm:ss} %p [%c{2}] - %m%nCreate/modify
GEOSERVER_DATA_DIR/logs/TEST_LOGGING.propertiesas follows## This log4j configuration file needs to stay here, and is used as the default logging setup ## during data_dir upgrades and in case the chosen logging config isn't available. ## ## As GeoTools uses java.util.logging logging instead of log4j, GeoServer makes ## the following mappings to adjust the log4j levels specified in this file to ## the GeoTools logging system: ## ## Log4J Level java.util.logging Level ## -------------------------------------------- ## ALL FINEST ## TRACE FINER ## DEBUG FINE (includes CONFIG) ## INFO INFO ## ERROR/ERROR ERRORING ## ERROR SEVERE ## OFF OFF log4j.rootLogger=ERROR, stdout log4j.appender.stdout=org.apache.log4j.ConsoleAppender log4j.appender.stdout.layout=org.apache.log4j.PatternLayout log4j.appender.stdout.layout.ConversionPattern=%d{dd MMM HH:mm:ss} %p [%c{2}] - %m%n GEOTOOLS_DEVELOPER_LOGGING.properties log4j.category.org.geotools=ERROR log4j.category.org.geotools.factory=ERROR log4j.category.org.geoserver=ERROR log4j.category.org.vfny.geoserver=ERROR log4j.category.org.springframework=ERROR # wicket tester log4j.category.org.apache.wicket.util.tester=INFODelete old security configuration files, in particular delete the following folders:
- GEOSERVER_DATA_DIR/security/auth/geonodeAuthProvider - GEOSERVER_DATA_DIR/security/filter/geonodeAnonymousFilter - GEOSERVER_DATA_DIR/security/filter/geonodeCookieFilterUpdate/modify the
GEOSERVER_DATA_DIR/securityas follows
./filter/geonode-oauth2/config.xmlLeft file: D:\tmp\data-2.12.2\data\security\filter\geonode-oauth2\config.xml Right file: D:\tmp\data-2.9.x-oauth2\data\security\filter\geonode-oauth2\config.xml 17 <!-- GeoServer Public URL --> 17 <!-- GeoServer Public URL --> ------------------------------------------------------------------------ 18 <redirectUri>http://localhost:8080/geoserver/index.html</redirectUri> <> 18 <redirectUri>http://localhost:8080/geoserver</redirectUri> ------------------------------------------------------------------------
./role/geonode REST role service/config.xmlLeft file: D:\tmp\data-2.12.2\data\security\role\geonode REST role service\config.xml Right file: D:\tmp\data-2.9.x-oauth2\data\security\role\geonode REST role service\config.xml 12 <adminRoleJSONPath>$.adminRole</adminRoleJSONPath> 13 <adminRoleJSONPath>$.adminRole</adminRoleJSONPath> ------------------------------------------------------------------------ 13 <usersJSONPath>$.users[?(@.username=='${username}')].groups</usersJSONPath> <> 14 <usersJSONPath>$.users[0].groups</usersJSONPath> 14 <cacheConcurrencyLevel>4</cacheConcurrencyLevel> 15 <cacheMaximumSize>60000</cacheMaximumSize> 16 <cacheExpirationTime>60000</cacheExpirationTime> ------------------------------------------------------------------------ 17 </authKeyRESTRoleService> = 15 </authKeyRESTRoleService> ------------------------------------------------------------------------
./config.xmlLeft file: D:\tmp\data-2.12.2\data\security\config.xml Right file: D:\tmp\data-2.9.x-oauth2\data\security\config.xml -+ 2 <roleServiceName>geonode REST role service</roleServiceName> ------------------------------------------------------------------------ ------------------------------------------------------------------------ 27 <filters name="gwc" class="org.geoserver.security.ServiceLoginFilterChain" interceptorName="restInterceptor" exceptionTranslationName="exception" path="/gwc/**" disabled="false" allowSessionCreation="false" ssl="false" matchHTTPMethod="false"> <> 28 <filters name="gwc" class="org.geoserver.security.ServiceLoginFilterChain" interceptorName="restInterceptor" exceptionTranslationName="exception" path="/gwc/rest/**" disabled="false" allowSessionCreation="false" ssl="false" matchHTTPMethod="false"> ------------------------------------------------------------------------ ------------------------------------------------------------------------ 30 <filter>anonymous</filter> +- 31 </filters> 32 <filters name="geofence-rest" class="org.geoserver.security.ServiceLoginFilterChain" interceptorName="restInterceptor" exceptionTranslationName="exception" path="/geofence/rest/**" disabled="false" allowSessionCreation="false" ssl="false" matchHTTPMethod="false"> 33 <filter>basic</filter> 34 <filter>geonode-oauth2</filter> 35 <filter>anonymous</filter> 36 </filters> 37 <filters name="geofence" class="org.geoserver.security.ServiceLoginFilterChain" interceptorName="interceptor" exceptionTranslationName="exception" path="/geofence/**" disabled="false" allowSessionCreation="false" ssl="false" matchHTTPMethod="false"> 38 <filter>basic</filter> 39 <filter>geonode-oauth2</filter> 40 <filter>anonymous</filter> ------------------------------------------------------------------------ ------------------------------------------------------------------------ 52 <bruteForcePrevention> +- 53 <enabled>true</enabled> 54 <minDelaySeconds>1</minDelaySeconds> 55 <maxDelaySeconds>5</maxDelaySeconds> 56 <maxBlockedThreads>100</maxBlockedThreads> 57 <whitelistedMasks> 58 <string>127.0.0.1</string> 59 </whitelistedMasks> 60 </bruteForcePrevention> ------------------------------------------------------------------------
./rest.propertiesLeft file: D:\tmp\data-2.12.2\data\security\rest.properties Right file: D:\tmp\data-2.9.x-oauth2\data\security\rest.properties ------------------------------------------------------------------------ 18 /rest/monitor/*;GET=ROLE_ADMINISTRATOR +- 19 /rest/security/*;GET,POST,DELETE,PUT=ROLE_ADMINISTRATOR 20 /rest/br/*;GET,POST,DELETE,PUT=ROLE_ADMINISTRATOR 21 /geofence/rest/*;GET,POST,DELETE,PUT=ROLE_ADMINISTRATOR ------------------------------------------------------------------------ ------------------------------------------------------------------------ 23 /**;POST,DELETE,PUT=ROLE_AUTHENTICATED <> 4 /**;POST,DELETE,PUT=ROLE_ADMINISTRATOR ------------------------------------------------------------------------Note
In case of dubts you can always try to do a “diff” between your old GEOSERVER_DATA_DIR and https://build.geo-solutions.it/geonode/geoserver/latest//data-2.12.2.zip
Update/tweak GeoNode
settings.py
Add
LOGIN_REDIRECT_URLLOGIN_REDIRECT_URL = '/'Modify
INSTALLED_APPSas followsLeft file: D:\work\code\python\geonode\geonode-2.7.x\geonode\settings.py Right file: D:\work\code\python\geonode\geonode-2.6.x\geonode\settings.py 281 # GeoServer Apps = 269 # GeoServer Apps 282 # Geoserver needs to come last because 270 # Geoserver needs to come last because 283 # it's signals may rely on other apps' signals. 271 # it's signals may rely on other apps' signals. 284 'geonode.geoserver', 272 'geonode.geoserver', 285 'geonode.upload', 273 'geonode.upload', 286 'geonode.tasks', 274 'geonode.tasks', ------------------------------------------------------------------------ 287 'geonode.messaging', +- ------------------------------------------------------------------------ 288 = 275 289 ) 276 ) 290 277 291 GEONODE_CONTRIB_APPS = ( 278 GEONODE_CONTRIB_APPS = ( 292 # GeoNode Contrib Apps 279 # GeoNode Contrib Apps ------------------------------------------------------------------------ 293 # 'geonode.contrib.dynamic', <> 280 'geonode.contrib.dynamic', 294 # 'geonode.contrib.exif', 281 'geonode.contrib.exif', 295 # 'geonode.contrib.favorite', 282 'geonode.contrib.favorite', 296 # 'geonode.contrib.geogig', 283 'geonode.contrib.geogig', 297 # 'geonode.contrib.geosites', 284 'geonode.contrib.geosites', 298 # 'geonode.contrib.nlp', 285 'geonode.contrib.nlp', 299 # 'geonode.contrib.slack', 286 'geonode.contrib.slack', ------------------------------------------------------------------------ 300 # 'geonode.contrib.createlayer', = 301 # 'geonode.contrib.datastore_shards', ------------------------------------------------------------------------ 302 'geonode.contrib.metadataxsl', <> 287 'geonode.contrib.metadataxsl' 303 'geonode.contrib.api_basemaps', 304 'geonode.contrib.ows_api', ------------------------------------------------------------------------ 305 ) = 288 ) 306 289 307 # Uncomment the following line to enable contrib apps 290 # Uncomment the following line to enable contrib apps ------------------------------------------------------------------------ 308 GEONODE_APPS = GEONODE_CONTRIB_APPS + GEONODE_APPS <> 291 # GEONODE_APPS = GEONODE_APPS + GEONODE_CONTRIB_APPS ------------------------------------------------------------------------ 309 = 292 310 INSTALLED_APPS = ( 293 INSTALLED_APPS = ( 311 294 312 'modeltranslation', 295 'modeltranslation', 313 296 314 # Boostrap admin theme 297 # Boostrap admin theme ------------------------------------------------------------------------ ------------------------------------------------------------------------ 334 'taggit', = 317 'taggit', 335 'treebeard', 318 'treebeard', 336 'friendlytagloader', 319 'friendlytagloader', 337 'geoexplorer', 320 'geoexplorer', 338 'leaflet', 321 'leaflet', 339 'django_extensions', 322 'django_extensions', ------------------------------------------------------------------------ 340 'django_basic_auth', <> 323 #'geonode-client', ------------------------------------------------------------------------ 341 # 'haystack', = 324 # 'haystack', 342 'autocomplete_light', 325 'autocomplete_light', 343 'mptt', 326 'mptt', 344 # 'modeltranslation', 327 # 'modeltranslation', 345 # 'djkombu', 328 # 'djkombu', ------------------------------------------------------------------------ 346 # 'djcelery', <> 329 'djcelery', ------------------------------------------------------------------------ 347 # 'kombu.transport.django', = 330 # 'kombu.transport.django', 348 349 'storages', 331 'storages', ------------------------------------------------------------------------ 350 'floppyforms', +- ------------------------------------------------------------------------ 351 = 332 352 # Theme 333 # Theme ------------------------------------------------------------------------ -+ 334 "pinax_theme_bootstrap_account", ------------------------------------------------------------------------ 353 "pinax_theme_bootstrap", = 335 "pinax_theme_bootstrap", 354 'django_forms_bootstrap', 336 'django_forms_bootstrap', 355 337 356 # Social 338 # Social 357 'account', 339 'account', 358 'avatar', 340 'avatar', ------------------------------------------------------------------------ ------------------------------------------------------------------------ 364 'actstream', = 345 'actstream', 365 'user_messages', 346 'user_messages', 366 'tastypie', 347 'tastypie', 367 'polymorphic', 348 'polymorphic', 368 'guardian', 349 'guardian', 369 'oauth2_provider', 350 'oauth2_provider', ------------------------------------------------------------------------ 370 'corsheaders', +- ------------------------------------------------------------------------ 371 = 351 ------------------------------------------------------------------------ 372 'invitations', +- ------------------------------------------------------------------------ 373 ) + GEONODE_APPS = 352 ) + GEONODE_APPS ------------------------------------------------------------------------Add
MONITORINGflags as followsMONITORING_ENABLED = False # how long monitoring data should be stored MONITORING_DATA_TTL = timedelta(days=7) # this will disable csrf check for notification config views, # use with caution - for dev purpose only MONITORING_DISABLE_CSRF = FalseUpdate
LOGGINGhandlers as followsLeft file: D:\work\code\python\geonode\geonode-2.7.x\geonode\settings.py Right file: D:\work\code\python\geonode\geonode-2.6.x\geonode\settings.py 396 'filters': { = 366 'filters': { 397 'require_debug_false': { 367 'require_debug_false': { 398 '()': 'django.utils.log.RequireDebugFalse' 368 '()': 'django.utils.log.RequireDebugFalse' 399 } 369 } 400 }, 370 }, 401 'handlers': { 371 'handlers': { ------------------------------------------------------------------------ -+ 372 'null': { 373 'level': 'ERROR', 374 'class': 'django.utils.log.NullHandler', 375 }, ------------------------------------------------------------------------ 402 'console': { = 376 'console': { 403 'level': 'ERROR', 377 'level': 'ERROR', 404 'class': 'logging.StreamHandler', 378 'class': 'logging.StreamHandler', 405 'formatter': 'simple' 379 'formatter': 'simple' 406 }, 380 }, 407 'mail_admins': { 381 'mail_admins': { ------------------------------------------------------------------------ ------------------------------------------------------------------------ 410 } = 384 } 411 }, 385 }, 412 "loggers": { 386 "loggers": { 413 "django": { 387 "django": { 414 "handlers": ["console"], "level": "ERROR", }, 388 "handlers": ["console"], "level": "ERROR", }, 415 "geonode": { 389 "geonode": { ------------------------------------------------------------------------ 416 "handlers": ["console"], "level": "ERROR", }, +- 417 "geonode.qgis_server": { ------------------------------------------------------------------------ 418 "handlers": ["console"], "level": "ERROR", }, = 390 "handlers": ["console"], "level": "ERROR", }, 419 "gsconfig.catalog": { 391 "gsconfig.catalog": { 420 "handlers": ["console"], "level": "ERROR", }, 392 "handlers": ["console"], "level": "ERROR", }, 421 "owslib": { 393 "owslib": { 422 "handlers": ["console"], "level": "ERROR", }, 394 "handlers": ["console"], "level": "ERROR", }, 423 "pycsw": { 395 "pycsw": { 424 "handlers": ["console"], "level": "ERROR", }, 396 "handlers": ["console"], "level": "ERROR", }, 425 }, 397 }, 426 } 398 } ------------------------------------------------------------------------Update
MIDDLEWAREandSECURITYflags as followsLeft file: D:\work\code\python\geonode\geonode-2.7.x\geonode\settings.py Right file: D:\work\code\python\geonode\geonode-2.6.x\geonode\settings.py 458 MIDDLEWARE_CLASSES = ( = 430 MIDDLEWARE_CLASSES = ( ------------------------------------------------------------------------ 459 'corsheaders.middleware.CorsMiddleware', +- ------------------------------------------------------------------------ 460 'django.middleware.common.CommonMiddleware', = 431 'django.middleware.common.CommonMiddleware', 461 'django.contrib.sessions.middleware.SessionMiddleware', 432 'django.contrib.sessions.middleware.SessionMiddleware', 462 'django.contrib.messages.middleware.MessageMiddleware', 433 'django.contrib.messages.middleware.MessageMiddleware', 463 434 464 # The setting below makes it possible to serve different languages per 435 # The setting below makes it possible to serve different languages per 465 # user depending on things like headers in HTTP requests. 436 # user depending on things like headers in HTTP requests. ------------------------------------------------------------------------ ------------------------------------------------------------------------ 467 'pagination.middleware.PaginationMiddleware', = 438 'pagination.middleware.PaginationMiddleware', 468 'django.middleware.csrf.CsrfViewMiddleware', 439 'django.middleware.csrf.CsrfViewMiddleware', 469 'django.contrib.auth.middleware.AuthenticationMiddleware', 440 'django.contrib.auth.middleware.AuthenticationMiddleware', 470 'django.middleware.clickjacking.XFrameOptionsMiddleware', 441 'django.middleware.clickjacking.XFrameOptionsMiddleware', 471 442 472 # Security settings ------------------------------------------------------------------------ 473 'django.middleware.security.SecurityMiddleware', +- ------------------------------------------------------------------------ 474 = 475 # This middleware allows to print private layers for the users that have 443 # This middleware allows to print private layers for the users that have 476 # the permissions to view them. 444 # the permissions to view them. 477 # It sets temporary the involved layers as public before restoring the 445 # It sets temporary the involved layers as public before restoring the 478 # permissions. 446 # permissions. 479 # Beware that for few seconds the involved layers are public there could be 447 # Beware that for few seconds the involved layers are public there could be ------------------------------------------------------------------------ ------------------------------------------------------------------------ 485 # django-oauth-toolkit. = 486 'django.contrib.auth.middleware.SessionAuthenticationMiddleware', 453 'django.contrib.auth.middleware.SessionAuthenticationMiddleware', 487 'oauth2_provider.middleware.OAuth2TokenMiddleware', 454 'oauth2_provider.middleware.OAuth2TokenMiddleware', 488 ) 455 ) 489 456 490 # Security stuff ------------------------------------------------------------------------ 491 MIDDLEWARE_CLASSES += ('django.middleware.security.SecurityMiddleware',) +- 492 SESSION_COOKIE_SECURE = False 493 CSRF_COOKIE_SECURE = False 494 CSRF_COOKIE_HTTPONLY = False 495 X_FRAME_OPTIONS = 'DENY' 496 SECURE_CONTENT_TYPE_NOSNIFF = True 497 SECURE_BROWSER_XSS_FILTER = True 498 SECURE_SSL_REDIRECT = False 499 SECURE_HSTS_SECONDS = 3600 500 SECURE_HSTS_INCLUDE_SUBDOMAINS = True ------------------------------------------------------------------------ 501 = 457 502 # Replacement of default authentication backend in order to support 458 # Replacement of default authentication backend in order to support 503 # permissions per object. 459 # permissions per object. 504 AUTHENTICATION_BACKENDS = ( 460 AUTHENTICATION_BACKENDS = ( 505 'oauth2_provider.backends.OAuth2Backend', 461 'oauth2_provider.backends.OAuth2Backend', 506 'django.contrib.auth.backends.ModelBackend', 462 'django.contrib.auth.backends.ModelBackend', ------------------------------------------------------------------------ ------------------------------------------------------------------------ 529 # Whether the uplaoded resources should be public and downloadable by default = 485 # Whether the uplaoded resources should be public and downloadable by default 530 # or not 486 # or not 531 DEFAULT_ANONYMOUS_VIEW_PERMISSION = strtobool( 487 DEFAULT_ANONYMOUS_VIEW_PERMISSION = strtobool( 532 os.getenv('DEFAULT_ANONYMOUS_VIEW_PERMISSION', 'True') 488 os.getenv('DEFAULT_ANONYMOUS_VIEW_PERMISSION', 'True') 533 ) 489 ) 534 DEFAULT_ANONYMOUS_DOWNLOAD_PERMISSION = strtobool( 490 DEFAULT_ANONYMOUS_DOWNLOAD_PERMISSION = strtobool( ------------------------------------------------------------------------ 535 os.getenv('DEFAULT_ANONYMOUS_DOWNLOAD_PERMISSION', 'True') <> 491 os.getenv('DEFAULT_ANONYMOUS_VIEW_PERMISSION', 'True') ------------------------------------------------------------------------ 536 ) = 492 ) 537 493 538 # 494 # 539 # Settings for default search size 495 # Settings for default search size 540 # 496 # 541 DEFAULT_SEARCH_SIZE = int(os.getenv('DEFAULT_SEARCH_SIZE', '10')) 497 DEFAULT_SEARCH_SIZE = int(os.getenv('DEFAULT_SEARCH_SIZE', '10')) ------------------------------------------------------------------------ ------------------------------------------------------------------------ 565 'USE_JSONFIELD': True, = 521 'USE_JSONFIELD': True, 566 'GFK_FETCH_DEPTH': 1, 522 'GFK_FETCH_DEPTH': 1, 567 } 523 } 568 524 569 570 # prevent signing up by default 525 # Settings for Social Apps ------------------------------------------------------------------------ 571 ACCOUNT_OPEN_SIGNUP = True <> 526 REGISTRATION_OPEN = strtobool(os.getenv('REGISTRATION_OPEN', 'False')) ------------------------------------------------------------------------ 572 = 573 ACCOUNT_EMAIL_CONFIRMATION_EMAIL = strtobool( 527 ACCOUNT_EMAIL_CONFIRMATION_EMAIL = strtobool( 574 os.getenv('ACCOUNT_EMAIL_CONFIRMATION_EMAIL', 'False') 528 os.getenv('ACCOUNT_EMAIL_CONFIRMATION_EMAIL', 'False') 575 ) 529 ) 576 ACCOUNT_EMAIL_CONFIRMATION_REQUIRED = strtobool( 530 ACCOUNT_EMAIL_CONFIRMATION_REQUIRED = strtobool( 577 os.getenv('ACCOUNT_EMAIL_CONFIRMATION_REQUIRED', 'False') 531 os.getenv('ACCOUNT_EMAIL_CONFIRMATION_REQUIRED', 'False') 578 ) 532 ) 579 ACCOUNT_APPROVAL_REQUIRED = strtobool( 533 ACCOUNT_APPROVAL_REQUIRED = strtobool( 580 os.getenv('ACCOUNT_APPROVAL_REQUIRED', 'False') 534 os.getenv('ACCOUNT_APPROVAL_REQUIRED', 'False') 581 ) 535 ) ------------------------------------------------------------------------Update the Uploader Settings as follows
UPLOADER = { 'BACKEND': 'geonode.rest', 'OPTIONS': { 'TIME_ENABLED': False, 'MOSAIC_ENABLED': False, 'GEOGIG_ENABLED': False, }, 'SUPPORTED_CRS': [ 'EPSG:4326', 'EPSG:3785', 'EPSG:3857', 'EPSG:900913', 'EPSG:32647', 'EPSG:32736' ], 'SUPPORTED_EXT': [ '.shp', '.csv', '.kml', '.kmz', '.json', '.geojson', '.tif', '.tiff', '.geotiff', '.gml', '.xml' ] }Update/modify
NOTIFICATIONSsettings as followsLeft file: D:\work\code\python\geonode\geonode-2.7.x\geonode\settings.py Right file: D:\work\code\python\geonode\geonode-2.6.x\geonode\settings.py 1099 # notification settings = ------------------------------------------------------------------------ 1100 NOTIFICATION_ENABLED = True or TEST +- 1101 PINAX_NOTIFICATIONS_LANGUAGE_MODEL = "account.Account" ------------------------------------------------------------------------ 1102 = 1103 # notifications backends ------------------------------------------------------------------------ 1104 _EMAIL_BACKEND = "pinax.notifications.backends.email.EmailBackend" +- 1105 PINAX_NOTIFICATIONS_BACKENDS = [ 1106 ("email", _EMAIL_BACKEND), 1107 ] ------------------------------------------------------------------------ 1108 = 1109 # Queue non-blocking notifications. 969 # Queue non-blocking notifications. ------------------------------------------------------------------------ 1110 PINAX_NOTIFICATIONS_QUEUE_ALL = False <> 970 NOTIFICATION_QUEUE_ALL = False 1111 PINAX_NOTIFICATIONS_LOCK_WAIT_TIMEOUT = -1 ------------------------------------------------------------------------ 1112 = 971 1113 # explicitly define NOTIFICATION_LOCK_LOCATION 1114 # NOTIFICATION_LOCK_LOCATION = <path> 1115 1116 # pinax.notifications 1117 # or notification 972 # notification settings ------------------------------------------------------------------------ 1118 NOTIFICATIONS_MODULE = 'pinax.notifications' <> 973 NOTIFICATION_LANGUAGE_MODULE = "account.Account" ------------------------------------------------------------------------ 1119 = 1120 # set to true to have multiple recipients in /message/create/ ------------------------------------------------------------------------ 1121 USER_MESSAGES_ALLOW_MULTIPLE_RECIPIENTS = False +- ------------------------------------------------------------------------ 1122 = ------------------------------------------------------------------------ 1123 if NOTIFICATION_ENABLED: +- 1124 if NOTIFICATIONS_MODULE not in INSTALLED_APPS: 1125 INSTALLED_APPS += (NOTIFICATIONS_MODULE, ) ------------------------------------------------------------------------Update/modify
CELERYsettings as followsLeft file: D:\work\code\python\geonode\geonode-2.7.x\geonode\settings.py Right file: D:\work\code\python\geonode\geonode-2.6.x\geonode\settings.py 1127 # async signals can be the same as broker url = 1128 # but they should have separate setting anyway 1129 # use amqp:// for local rabbitmq server ------------------------------------------------------------------------ 1130 ASYNC_SIGNALS_BROKER_URL = 'memory://' +- ------------------------------------------------------------------------ 1131 = ------------------------------------------------------------------------ 1132 CELERY_BROKER_URL = os.getenv('BROKER_URL', "amqp://") <> 974 BROKER_URL = os.getenv('BROKER_URL', "django://") 975 CELERY_ALWAYS_EAGER = True 976 CELERY_EAGER_PROPAGATES_EXCEPTIONS = True 977 CELERY_IGNORE_RESULT = True 978 CELERY_SEND_EVENTS = False ------------------------------------------------------------------------ 1133 CELERY_RESULT_BACKEND = None = 979 CELERY_RESULT_BACKEND = None ------------------------------------------------------------------------ 1134 CELERY_TASK_ALWAYS_EAGER = True # set this to False in order to run async +- 1135 CELERY_TASK_IGNORE_RESULT = True 1136 CELERY_TASK_DEFAULT_QUEUE = "default" 1137 CELERY_TASK_DEFAULT_EXCHANGE = "default" 1138 CELERY_TASK_DEFAULT_EXCHANGE_TYPE = "direct" 1139 CELERY_TASK_DEFAULT_ROUTING_KEY = "default" 1140 CELERY_TASK_CREATE_MISSING_QUEUES = True ------------------------------------------------------------------------ 1141 CELERY_TASK_RESULT_EXPIRES = 1 = 980 CELERY_TASK_RESULT_EXPIRES = 1 ------------------------------------------------------------------------ 1142 CELERY_WORKER_DISABLE_RATE_LIMITS = True <> 981 CELERY_DISABLE_RATE_LIMITS = True 982 CELERY_DEFAULT_QUEUE = "default" 983 CELERY_DEFAULT_EXCHANGE = "default" 984 CELERY_DEFAULT_EXCHANGE_TYPE = "direct" 1143 CELERY_WORKER_SEND_TASK_EVENTS = False 985 CELERY_DEFAULT_ROUTING_KEY = "default" 1144 986 CELERY_CREATE_MISSING_QUEUES = True 1145 CELERY_QUEUES = [ 987 CELERY_IMPORTS = ( 1146 Queue('default', routing_key='default'), 988 'geonode.tasks.deletion', 1147 Queue('cleanup', routing_key='cleanup'), 1148 Queue('update', routing_key='update'), 989 'geonode.tasks.update', 1149 Queue('email', routing_key='email'), 990 'geonode.tasks.email' 1150 ] 991 ) ------------------------------------------------------------------------ 1177 = 1018 1178 1019 -------------------------------------------------------------- 1179 # djcelery.setup_loader() <> 1020 djcelery.setup_loader() -------------------------------------------------------------- 1180 = 1021 --------------------------------------------------------------Additional/new Geonode behavior
settingsDISPLAY_SOCIAL = strtobool(os.getenv('DISPLAY_SOCIAL', 'True')) DISPLAY_COMMENTS = strtobool(os.getenv('DISPLAY_COMMENTS', 'True')) DISPLAY_RATINGS = strtobool(os.getenv('DISPLAY_RATINGS', 'True')) DISPLAY_WMS_LINKS = strtobool(os.getenv('DISPLAY_WMS_LINKS', 'True')) # Number of results per page listed in the GeoNode search pages CLIENT_RESULTS_LIMIT = int(os.getenv('CLIENT_RESULTS_LIMIT', '20')) # Number of items returned by the apis 0 equals no limit API_LIMIT_PER_PAGE = int(os.getenv('API_LIMIT_PER_PAGE', '200')) API_INCLUDE_REGIONS_COUNT = strtobool( os.getenv('API_INCLUDE_REGIONS_COUNT', 'False')) # Make Free-Text Kaywords writable from users or read-only # - if True only admins can edit free-text kwds from admin dashboard FREETEXT_KEYWORDS_READONLY = False # Each uploaded Layer must be approved by an Admin before becoming visible ADMIN_MODERATE_UPLOADS = False # add following lines to your local settings to enable monitoring if MONITORING_ENABLED: if 'geonode.contrib.monitoring' not in INSTALLED_APPS: INSTALLED_APPS += ('geonode.contrib.monitoring',) if 'geonode.contrib.monitoring.middleware.MonitoringMiddleware' not in MIDDLEWARE_CLASSES: MIDDLEWARE_CLASSES += \ ('geonode.contrib.monitoring.middleware.MonitoringMiddleware',) GEOIP_PATH = os.path.join(PROJECT_ROOT, 'GeoIPCities.dat') # If this option is enabled, Resources belonging to a Group won't be # visible by others GROUP_PRIVATE_RESOURCES = False # If this option is enabled, Groups will become strictly Mandatory on # Metadata Wizard GROUP_MANDATORY_RESOURCES = False # A boolean which specifies wether to display the email in user's profile SHOW_PROFILE_EMAIL = False # Enables cross origin requests for geonode-client MAP_CLIENT_USE_CROSS_ORIGIN_CREDENTIALS = strtobool(os.getenv( 'MAP_CLIENT_USE_CROSS_ORIGIN_CREDENTIALS', 'False' ))Update/modify
THUMBNAIL GENERATORLeft file: D:\work\code\python\geonode\geonode-2.7.x\geonode\settings.py Right file: D:\work\code\python\geonode\geonode-2.6.x\geonode\settings.py 1284 = 1285 # Choose thumbnail generator -- this is the default generator 1077 # Choose thumbnail generator -- this is the default generator ------------------------------------------------------------------------ 1286 THUMBNAIL_GENERATOR = "geonode.layers.utils.create_gs_thumbnail_geonode" <> 1078 THUMBNAIL_GENERATOR = "geonode.geoserver.helpers.create_gs_thumbnail_geonode" ------------------------------------------------------------------------
Final Steps
Run paver setup in order to download the latest Jetty Runner
Warning
Don’t do this if your GEOSERVER_DATA_DIR is located under
geonode/geoserver/data; it will be wiped out!! In this case download Jetty Runner manually from http://repo2.maven.org/maven2/org/eclipse/jetty/jetty-runner/9.4.7.v20170914/jetty-runner-9.4.7.v20170914.jar And put is undergeonode/downloadedfolderDJANGO_SETTINGS_MODULE=geonode.local_settings paver setupStart the server
DJANGO_SETTINGS_MODULE=geonode.local_settings paver startRe-sync GeoFence Security Rules
DJANGO_SETTINGS_MODULE=geonode.local_settings paython manage.py sync_geofence
Appendix A¶
Warning
Before you proceed with the following steps, it is recommended that you perform a full backup of your current environment. In the next section thare’s a listing of the steps required to perform a full / hard backup of the whole stack.
Backup of the old Environment¶
Backup of the DataBase
- From “local_settings” or “settings” (vim
geonode/local_settings.py) retrieve all the DB connection parameters
- Dump all the DBs
sudo su - postgres
pg_dump -d geonode -U geonode -f /tmp/geonode.dump
pg_dump -d geonode_data -U geonode -f /tmp/geonode_data.dump
Backup of GeoServer
- Backup the old GeoServer binaries
tar czvf /tmp/geoserver.tar.gz geoserver/
- Backup of the GeoServer Data Dir
- As an admin login into GeoServer gui (http://localhost:8080/geoserver/)
- Click on “Server Status” and note the “Data Directory” path
tar czvf /tmp/geoserver_data.tar.gz /home/geosolutions/geonode/geoserver/data/
- Backup of Uploaded/Media and Static files

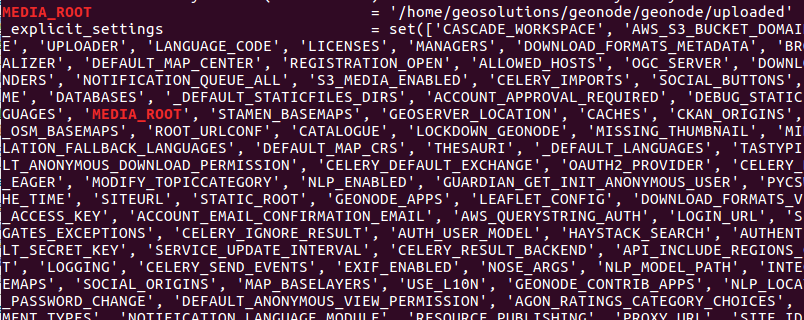

DJANGO_SETTINGS_MODULE=geonode.local_settings python manage.py print_settings | grep MEDIA_ROOT
tar czvf /tmp/geonode_media.tar.gz /home/geosolutions/geonode/gonode/uploaded
- do the same for
STATIC_ROOT,TEMPLATES(all folders listed),LOCALE(all folders listed)
- Backup of the original source code
- Make sure you have everything committed and pushed for your local Git branches
- In case you are working locally, make sure you saved everything before proceeding with the update
